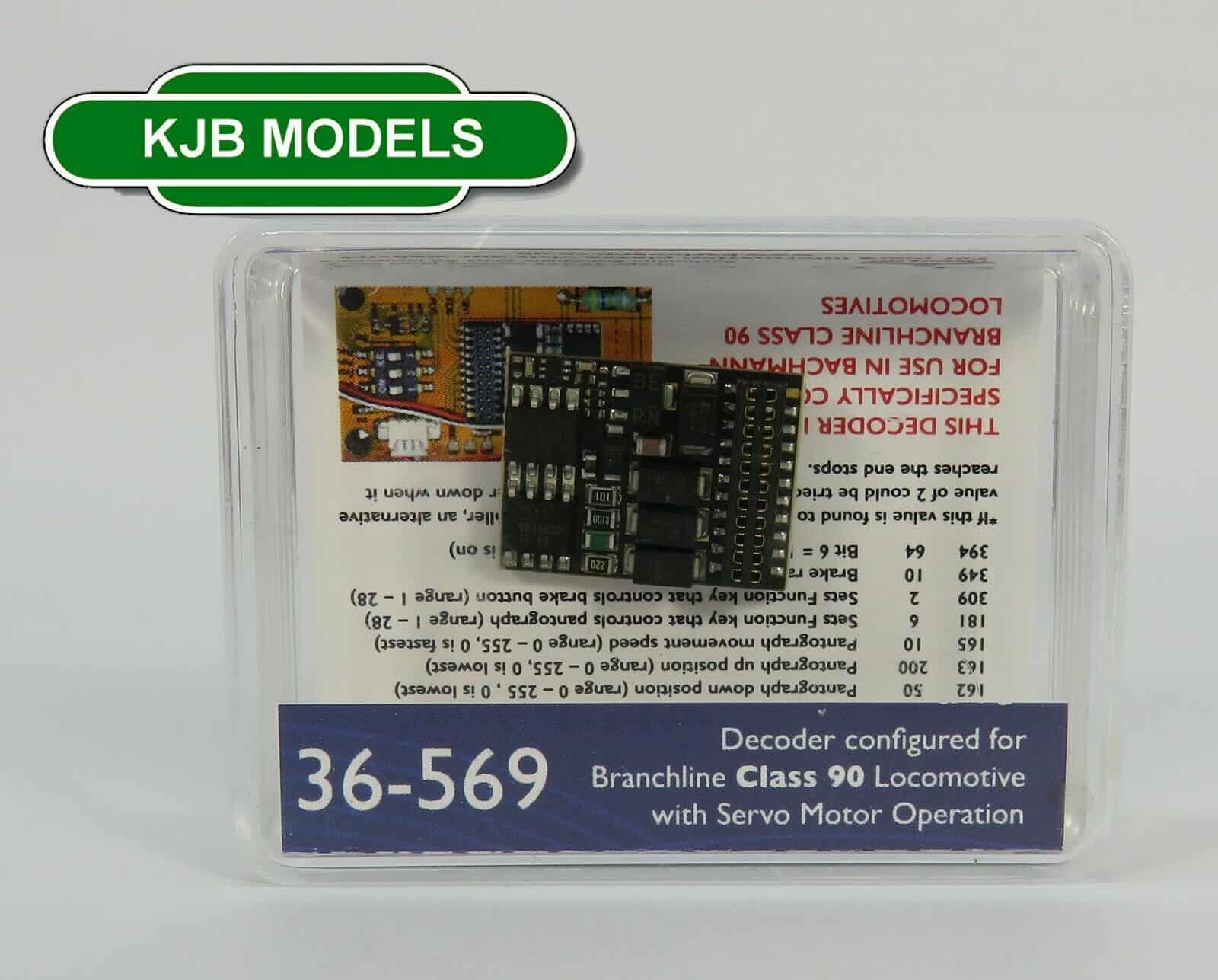

Bachmann36-569 DCC Decoder For Bachmann Class 90 With Pantograph & Brake FunctionsBrand new model from our new Yorkshire model railway shop
A 21 Pin (21MTC) DCC Decoder configured for use in theBachmann Branchline Class 90 (item Nos. 32-610, 32-611, 32-612 and 32-612Konly). Configured to control the servo-motor-operated Pantograph.Highlights include:Dual-mode DCC/DC decoder with Back EMF function1.2A continuous loadBrake Button function for realistic control of brakingControls the servo-motor-operated Pantograph Default Functions when fitted to Bachmann BranchlineClass 90F0 – Direction Lights on/offF1 – Cab Lights (Directional) on/offF2 – Brake ButtonF3 – Day/Night ModeF4 – Direction Lights Off (Non-Pantograph End)F5 – Direction Lights Off (Pantograph End)F6 – Pantograph Up/DownOperating ModesNMRA/DCC with 14, 28 and 128 speed stepsShort and Long addressesDCC and DC operation (DC operation is de-selectable)Motor Control Features1.2A continuous loadVariable pulse width frequency motor regulation (up to40kHz)Motor output overload protection; Back EMF (de-selectable)Function OutputsPre-configured to operate lights and servo-motor-controlledPantographDimensions20.5mm x 15.5mm x 3.5mmDefault AddressAddress 3ProgrammingDCC Service Mode & DCC PoM (Programming on Main)Additional FeaturesRailCom® Feedback systemCapacitor connections
